Sirio 27Mhz basis antenne GPS 1/2

  • 55.95 €

Merk en type : Sirio GPS1/2 Type: GPE 5/8: 5/8 λ ground plane GPS 1/2: 1/2 λ Radiation: Omnidirectional Polarization: Linear vertical Frequency range: 26.4 ... 29.0 MHz Tunable Systems: 10m-HAM Gain: GPE 5/8: 1.2 dBd, 3.35 dBiGPS 1/2: 0 dBd, 2.15 dBi Bandwidth: ≥ 1.6MHz @ SWR ≤ 2 Max P


Producent: Sirio

Tags: CB antenne Sirio GPS1/2 CB basis antenne


Downloads

Gps12


Product Omschrijving

Merk en type : Sirio GPS1/2

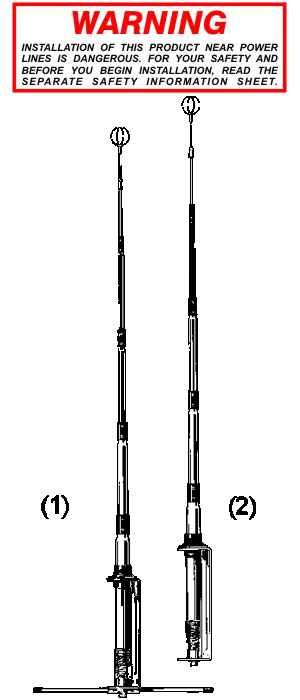

Type: GPE 5/8: 5/8 λ ground plane GPS 1/2: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.4 ... 29.0 MHz Tunable
Systems: 10m-HAM
Gain: GPE 5/8: 1.2 dBd, 3.35 dBi
GPS 1/2: 0 dBd, 2.15 dBi
Bandwidth: ≥ 1.6MHz @ SWR ≤ 2
Max Power: 250 Watts (CW) continuous
750 Watts (CW) short time
Grounding protection: DC-Ground
Connector: UHF-female (SO-239 PL-259)

Mechanical Data:

Materials: Aluminium, Copper, Galvanized steel, Nylon
Height (approx): 5950 mm / 19.52 ft
Weight (approx):
GPE 5/8:
2500 gr / 5.51 lb
GPS 1/2:
2100 gr / 4.63 lb
Mounting type: On-Mast
